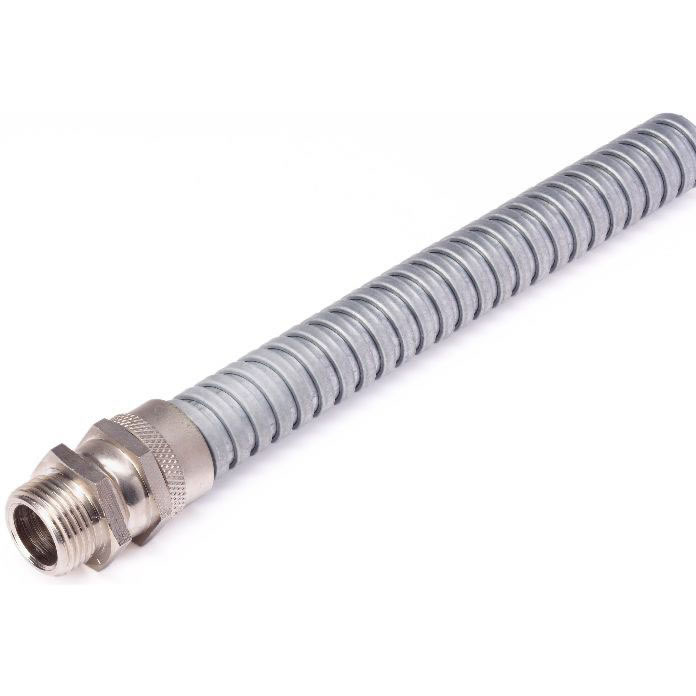

VJ Type Brass Swivel Connector Fixed Connector

VJ Type Brass Swivel & Fixed Connectors

Model: VJCM-B*

Description: Conduit fitting specifically for vacuum jacketed conduit
Structure: Connector body with hexagonal wrench surface, thread ISO metric in accordance with IEC 60079, and shell cover

Category:

Material

  • Connector body – Nickel Plated Brass
  • Shell cover – Nickel Plated Brass

Features

  • Simple, and easy installation
  • IP54 rating
  • High mechanical strength
  • Vibration and tension proof
  • Inherently low fire hazard
  • Covering of the conduit ends
  • Available in ISO Metric threads

Applications

  • General industrial and commercial electrical wiring protection
  • Any narrow space in static applications
  • General wiring for OEM applications
  • Low fire hazard applications

Special Applications:
According to customer’s samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.

Specifications

VJC Conduit Non Liquid Tight Connectors

Conduit
Size		 Thread
Size		 Straight Brass
Swivel		 Straight Brass
Fixed
16mm 16mm VJCM-B09 VJCM-09F
16mm 20mm VJCM-B10 VJCM-10F
20mm 20mm VJCM-B11 VJCM-11F
25mm 25mm VJCM-B12 VJCM-12F
32mm 32mm VJCM-B13 VJCM-13F
40mm 40mm VJCM-B14 VJCM-14F
50mm 50mm VJCM-B15 VJCM-15F
63mm 63mm VJCM-B16 VJCM-16F



For application where liquid tight is required the following parts are available:

Conduit
Size		 Thread

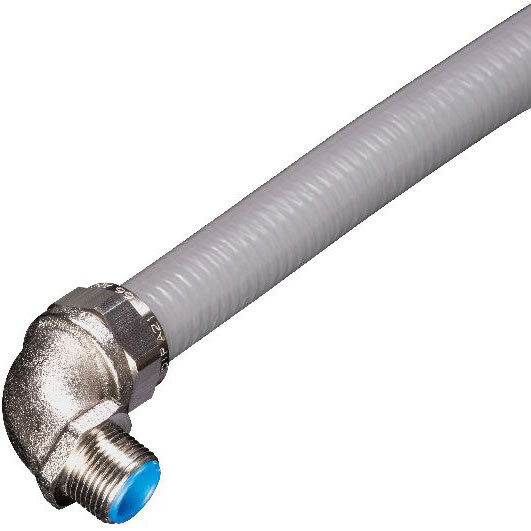

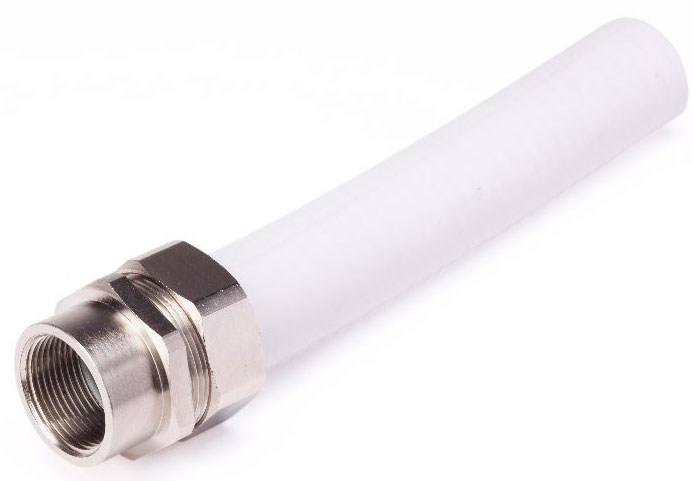

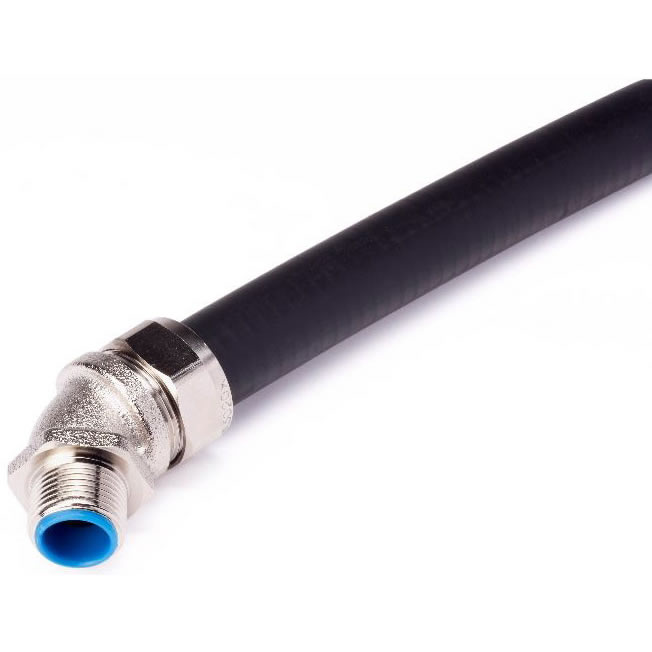

Size		 Straight 90 Degree 45 Degree Female
16mm 16mm VJCML-B09 VJCML-B209 VJCML-B309 VJCML-B609
16mm 20mm VJCML-B10 VJCML-B20 VJCML-B30 VJCML-B60
20mm 20mm VJCML-B11 VJCML-B21 VJCML-B31 VJCML-B61
25mm 25mm VJCML-B12 VJCML-B22 VJCML-B32 VJCML-B62
32mm 32mm VJCML-B13 VJCML-B23 VJCML-B33 VJCML-B63
40mm 40mm VJCML-B14 VJCML-B24 VJCML-B34 VJCML-B64
50mm 50mm VJCML-B15 VJCML-B25 VJCML-B35 VJCML-B65
63mm 63mm VJCML-B16 VJCML-B26 VJCML-B36



Suitable flexible conduits

  • VJ type of vacuum jacketed flexible conduit
  • SL type of flexible metallic conduit
