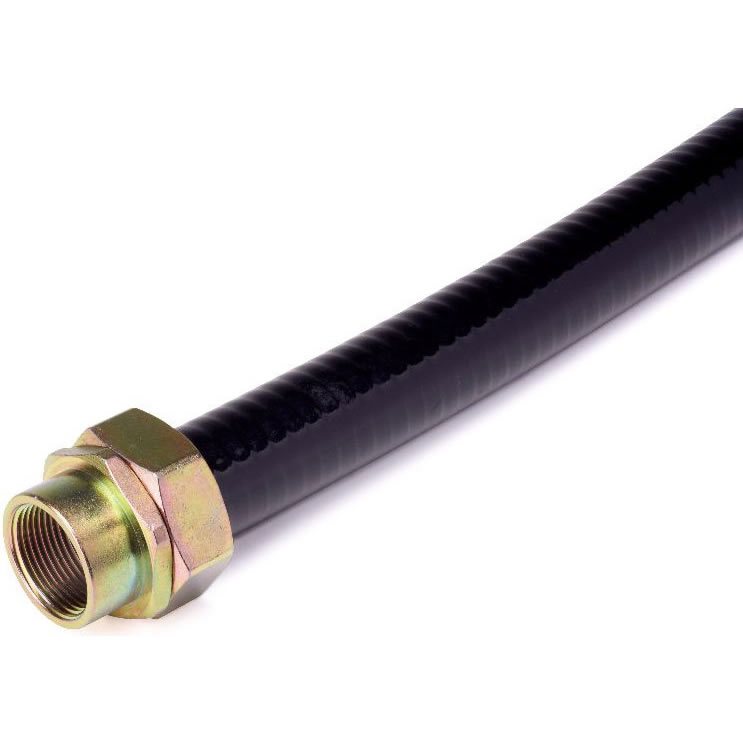

Vacuum Jacketed Conduit

Model: VJ-*

Description: Type VJC has an extruded PVC jacket over the flexible metal core. The jacket does not restrict the high flexibility characteristics of the inner core. The conduit has the same inner dimensions as type LT which facilitates the use of standard Triflex liquid tight connectors IP66.

Category:

Features

  • Galvanized steel, square-locked core
  • PVC vacuum jacketed
  • Light weight
  • Water resistance
  • Excellent flexibility
  • Temperature range from -10oC to +105oC
  • PVC colour black (standard) or orange (made to order)
  • For use with Nickel plated brass fittings, malleable iron fittings, stainless steel fittings, steel fittings and zinc diecast  fittings

Applications

  • General industrial and commercial electrical wiring protection
  • Machining centres and robotics
  • any narrow space in static applications

Special Applications: According to customer’s samples and specifications

Specifications

Part No Nominal Size
ISO (mm)
VJ-10 16
VJ-11 20
VJ-12 25
VJ-13 32
VJ-14 40
VJ-15 50
VJ-16 63

Suitable fittings

  • VJ type of fittings – IP54 (non-liquid-tight)
  • LT type of fittings – IP66 (liquid-tight)
