Universal Barrier Connectors for Rigid Pipe – FB Explosion Proof Connectors

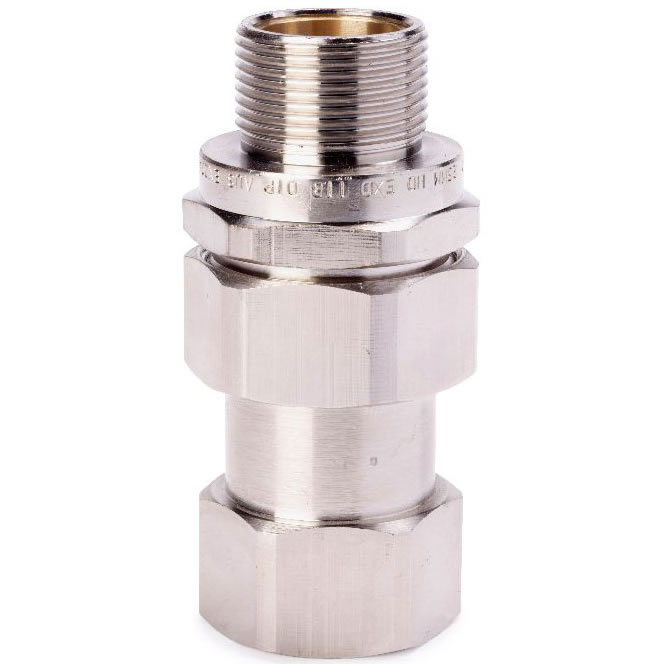

FB Explosion Proof Connectors
The FB barrier connectors (universal connectors) can be used in flameproof (Ex d) and dust-excluding ignition-proof (DIP) applications.
The connector has a male thread at one end and a female thread at the other.
The connector kit includes an easy to use two part epoxy putty which is packed around the cables.
Assembling and packing the connector is a simple operation.
Ease of installation is facilitated by the swivelling action of the connector (union style).
| Part No | I.D. | Male Thread | Female Thread | Use with Conduit |
| FB-20 | 13.5mm | 20mm | 20mm | Rigid Threaded M20 x 1.5 |
| FB-20B | 13.5mm | 20mm | BSP 3/4″ | Rigid Threaded M20 x 1.5 |
| FB-25 | 18mm | 25mm | 25mm | Rigid Threaded M25 x 1.5 |
| FB-25B | 18mm | 25mm | BSP 1″ | Rigid Threaded M25 x 1.5 |
