Material
- Connector body – 304 Stainless Steel
- Hexagon nut – 304 Stainless Steel
- Sealing ring – Nylon 66
- Ferrule – Galvanized steel
- 316 stainless steel available upon request (minimum order quantities apply)

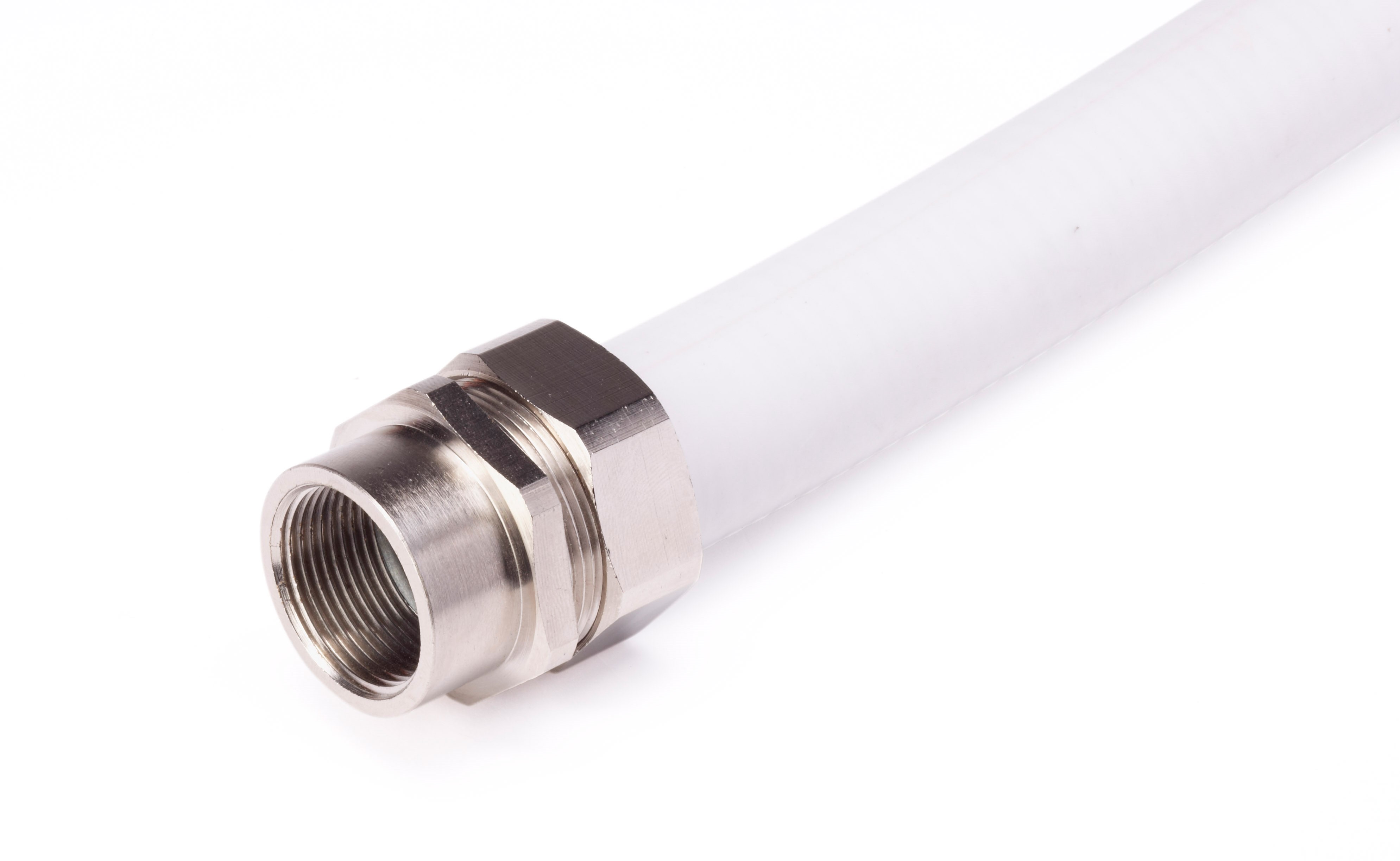

Stainless Steel Straight Connector – Female Thread
Model: LTCM-S6*
Description: Straight Connector Stainless Steel – Female Thread
Structure: Connector body with hexagonal wrench surface, thread ISO metric in accordance with IEC 60079, hexagonal nut, sealing ring and ferrule
Features
- Simple, one piece installation provides a quick and reliable liquid-tight seal
- IP66 rating
- High mechanical strength
- Liquid-tight and dustproof
- Vibration and tension proof
- Inherently low fire hazard
- Covering of the conduit ends

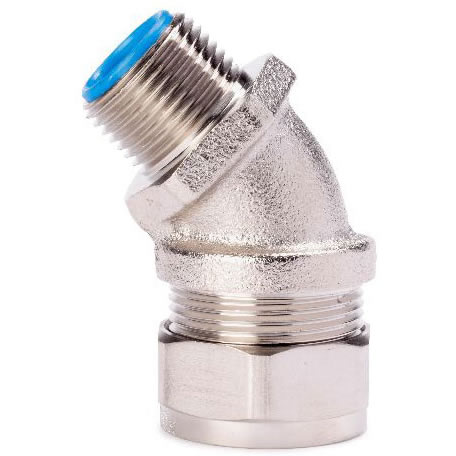

- Available in straight, 45 degree and 90 degree bodies
- Available in ISO Metric threads
Applications
- General industrial and commercial electrical wiring protection
- Machining centres and robotics
- Any narrow space in static applications
- General wiring for OEM applications
- Low fire hazard applications
- Under floor wiring in office buildings Special Applications
- Machine tools
- Installations where liquid-tight is a requirement
- Outdoor installation
Special Applications: According to customer’s samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications
| Part Number | ISO Thread (mm) | Conduit Size (mm) |
| LTCM-S609 | 16 | 16 |
| LTCM-S60 | 20 | 16 |
| LTCM-S61 | 20 | 20 |
| LTCM-S62 | 25 | 25 |
| LTCM-S63 | 32 | 32 |
| LTCM-S64 | 40 | 40 |
| LTCM-S65 | 50 | 50 |
| LTCM-S66 | 63 | 63 |
Suitable flexible conduits
- VJ type of vacuum jacketed flexible conduit
- LT type of liquid-tight flexible conduit
- SL type of flexible metallic conduit
- LTX type of extreme liquid-tight flexible conduit
